duct drawing programMech-Q Ducting is an add-on for AutoCAD, Bricscad and IntelliCAD. It is also available within our CAD standalone called AViCAD. The HVAC Ducting module really makes HVAC layout easy. Create 2D & 3D rectangular, round and flat oval ducting. Includes many duct transitions + BOM.

Try Now Get Started

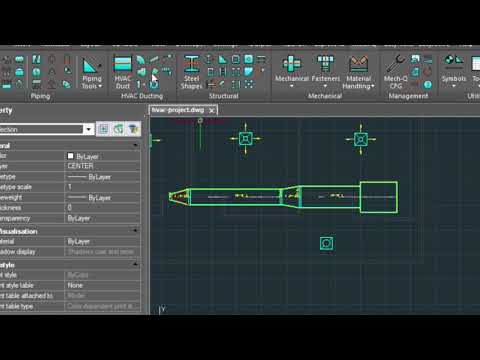

2D Ducting Video – Demoing Mech-Q inside of AViCAD.  Mech-Q also runs in AutoCAD, Bricscad and IntelliCAD.

Save $100 on all perpetual licenses during October!

Full fledged Ducting software at the right price

mechq ducting menuIf your looking for CAD mechanical software with all the bells and whistles without the high, monthly subscription fees, then Mech-Q is the right tool for the job.

Don’t get stuck with engineering software that’s top heavy and hard to use. Why pay for features you’ll never use? Mech-Q is a full-fledged software package with just the right feature set. It has all the CAD engineering tools you need to be productive from day one. With no painful learning curve. No long term commitments.

Mech-Q also offers the most affordable engineering application available today.

What’s required to run Mech-Q?

Mech-Q is AutoCAD® compatible engineering software, but also runs in other CAD platforms or even as a standalone! In addition to AutoCAD and it’s many vertical products like Plant 3D for example, Mech-Q integrates with Bricscad, GstarCAD, CADian, progeCAD, AcelliCAD and other IntelliCAD products.

[toggle_content title=”Click to see what’s inside the Ducting Software”]

Duct drawing program Features

  • Rectangular, Round and Flat Oval Duct. With or without insulation
  • The Ducts can drawn with Flanges (flat/Angle) and Male/Female.
  • Build-in and customizable symbols, duct labels, elevation – several view options
  • Fully customizable and several configurations can be saved.
  • With Auto-BOM, with sheet material take-off
  • Duct data listing for easy identification of parts
  • Duct, bends & tees – Cut sheet development.
  • Full Layers Control
  • Duct Equivalent Size calculator
  • Duct identification labels & Elevation labels

Straight Duct and Duct Runs Module

Our duct drawing program features include:

  • Fully customizable
  • Rectangular, Flat Oval & Round duct
  • Auto-BOM, data listing, pick & match.
  • Flat sheet development
  • Several ends joining option, including joints at pre-determined intervals.
  • Top, centre or bottom duct insertion option
  • Insulation, auto-label, several views draw options…

Duct Bends & Elbows:

  • Fully customizable bend/elbow configuration
  • Rectangular, Flat Oval & Round duct
  • Mitre, radius, square throat, dual radius…
  • Auto-BOM, data listing, pick & match.
  • Flat sheet development
  • Turning vanes option.
  • Insulation, several views draw options…

Duct Transforms & Transitions:

  • Customizable sizes, layers & shape
  • Rectangular-rectangular, rectangular to round, rectangular to flat oval…
  • Concentric & eccentric
  • Auto-BOM, data listing, pick & match.
  • Top, center or bottom duct insertion option
  • Insulation, auto-size label…

Duct Tees & Wyes:

  • Customizable sizes, layers & shape
  • Symetrical, asymetrical, risers. asym. branch, radiused bends, wyes…
  • Concentric & eccentric
  • Auto-BOM, pick & match.
  • Top, centre or bottom duct insertion option
  • Turning vanes option.
  • Insulation, several views draw options…

Duct Branches:

  • Customizable sizes, layers & shape
  • Round main to round branch, rectangular main to round branch…
  • Straight, 90/45 & 45/45
  • Up or down direction
  • Auto-BOM, pick & match..
  • Insulation…

Duct Diffusers:

  • Customizable sizes, layers & shape
  • Round to round, rectangular to round, rectangular to rectangular.
  • Supply, returns & exhaust
  • Up or down direction
  • Auto-BOM, pick & match..
  • several views draw options…

Duct Offsets:

  • Customizable sizes, layers & shape
  • Straight & radius-ed
  • Auto-BOM, pick & match..
  • several configurations & draw options…
  • Insulation…

Ducting Accessories:

  • Customizable sizes, layers & shape
  • Flexible duct, conical fittings, terminal units, heating units, Registers
  • Return air grills, access doors…
  • Auto-BOM, pick & match..
  • Top, center or bottom duct insertion option
  • several configurations & draw options…
  • Auto-label…

[/toggle_content]

For larger office a Mech-Q Network Module is also available.

Download this Ducting Software Module!

Trial is available.

Download Mech-Q Trial

Still want to explore some more? The image below is interactive. Click on each module “gear” to find out more about the other modules.
